Chapter 12: Robot Control Systems – Trajectory Planning and Path Planning

Abstract:

In robot control systems, "path planning" refers to determining the geometric route a robot should take to reach a target location, avoiding obstacles, while "trajectory planning" takes that path and adds the timing information, defining the speed and acceleration at each point along the path to ensure smooth and controlled movement.

Key points about path planning:

• Focus on geometry: Primarily concerned with finding a collision-free path between a starting point and a goal point, considering the robot's workspace and obstacles.
• Algorithms used: Popular algorithms include A* search, Dijkstra's algorithm, Rapidly-exploring Random Trees (RRT), and potential field methods.
• Output: A sequence of waypoints (positions) that the robot needs to follow.

Key points about trajectory planning:

• Time-based motion:

  Adds time information to the path, specifying velocity and acceleration profiles at each point along the path.
• Smoothness and dynamics:

  Ensures the robot's movement is smooth by considering factors like joint limits, maximum acceleration, and jerk.
• Optimization considerations:

  Can optimize trajectories based on factors like minimizing travel time, energy consumption, or minimizing forces on the robot.

Relationship between path planning and trajectory planning:

• Sequential process:

  Path planning is typically done first to find a collision-free route, and then trajectory planning is applied to that path to generate a timed motion profile.
• Interdependence:

  The chosen path can influence the feasibility of the trajectory, and constraints from the trajectory may need to be considered when planning the path.

Applications:

• Industrial robots: Precisely moving a robotic arm to pick and place objects.
• Autonomous vehicles: Navigating a car through a complex environment
• Medical robotics: Performing surgical procedures with fine motor control

So let's explore the Chapter 12 in details

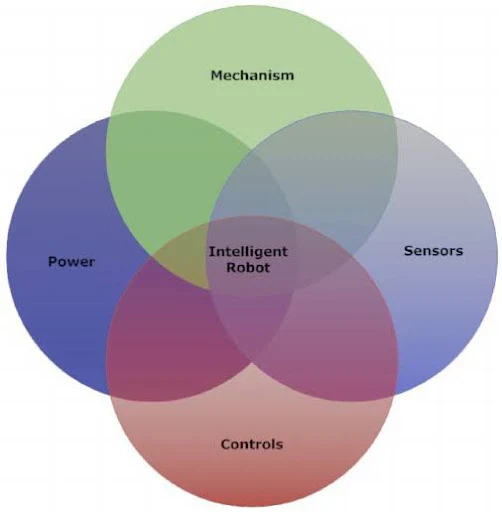

12.1 Introduction

Robot control systems are responsible for directing a robot’s movements and actions based on predefined goals, environmental conditions, and task requirements. Two essential aspects of robotic motion control are trajectory planning and path planning. While path planning focuses on finding a collision-free route from the start to the goal, trajectory planning ensures smooth motion along that path while considering time, velocity, and acceleration constraints.

This chapter explores these two key concepts, discussing their principles, algorithms, and applications in robotics.

12.2 Path Planning

Path planning is the process of determining a feasible path from an initial position to a target position while avoiding obstacles. It is widely used in autonomous vehicles, industrial robots, and mobile robots.

12.2.1 Types of Path Planning

Path planning can be classified into two main categories:

1. Global Path Planning – The robot has prior knowledge of the environment (map-based).
2. Local Path Planning – The robot navigates in real-time based on sensor data without a predefined map.

12.2.2 Path Planning Methods

Several algorithms are used for path planning, including:

1. Graph-Based Methods

These methods represent the environment as a graph and use search algorithms to find an optimal path.

• Dijkstra’s Algorithm: Finds the shortest path in a weighted graph but is computationally expensive.
• A (A-Star) Algorithm*: An improved version of Dijkstra’s algorithm that uses heuristics for faster computations.
• Probabilistic Roadmap (PRM): A sampling-based method that constructs a roadmap using random points and connects feasible paths.
• Rapidly Exploring Random Tree (RRT): An efficient method for high-dimensional spaces that grows a tree toward the target while avoiding obstacles.

2. Grid-Based Methods

• Occupancy Grid: Represents the environment as a grid of occupied and free cells for easy navigation.
• Wavefront Algorithm: Uses breadth-first search to propagate a wave of potential values for finding a path.

3. Artificial Intelligence (AI) Based Methods

• Genetic Algorithms (GA): Uses evolutionary principles for optimization in complex environments.
• Artificial Neural Networks (ANNs): Machine learning techniques for real-time path planning.
• Fuzzy Logic Systems: Handles uncertain and imprecise environments for adaptive navigation.

12.2.3 Path Smoothing and Optimization

Once a basic path is found, it needs to be smoothed and optimized for better motion efficiency. Common methods include:

• Bézier Curves: Smooth curves for robot motion planning.
• B-Splines: Flexible curves to ensure smooth transitions.
• Polynomial Interpolation: Provides continuous and differentiable paths.

12.3 Trajectory Planning

Trajectory planning ensures smooth movement along the planned path while maintaining constraints such as velocity, acceleration, and jerk. It is essential for robotic arms, drones, and mobile robots.

12.3.1 Types of Trajectory Planning

1. Time-Parameterized Trajectory: Plans motion with respect to time.
2. Kinematic Trajectory: Considers velocity and acceleration constraints.
3. Dynamic Trajectory: Takes into account the robot’s forces and torques.

12.3.2 Trajectory Planning Methods

1. Point-to-Point (PTP) Trajectory Planning

• Used in pick-and-place robots, where only the start and end points matter.
• No concern for the intermediate path as long as it is collision-free.

2. Continuous Trajectory Planning

• Linear Trajectories: Simple and direct motion with velocity constraints.
• Parabolic Trajectories: Smoother motion by incorporating acceleration limits.
• Polynomial Trajectories:
  • Cubic Polynomial: Ensures smooth acceleration.
  • Quintic Polynomial: Provides smooth position, velocity, and acceleration.
• Trapezoidal and S-Curve Profiles: Control acceleration for gradual speed changes.

12.3.3 Optimal Trajectory Generation

Optimization techniques help in refining trajectories for better efficiency and energy savings. Common optimization methods include:

• Dynamic Programming: Used for complex motion planning problems.
• Optimal Control Theory: Minimizes energy consumption and motion jerk.
• Reinforcement Learning: AI-based learning for adaptive trajectory planning.

12.4 Comparison of Path Planning and Trajectory Planning

Feature	Path Planning	Trajectory Planning
Purpose	Finds a collision-free path	Defines smooth motion along the path
Input	Start and goal positions, obstacles	Path, velocity, acceleration constraints
Output	A sequence of waypoints	A continuous motion profile
Consideration	Obstacles, environment map	Time, kinematics, and dynamics
Example Algorithm	A*, RRT, PRM	Cubic polynomial, trapezoidal velocity profile

12.5 Applications of Path and Trajectory Planning

1. Autonomous Vehicles: Navigation of self-driving cars using real-time path planning.
2. Industrial Robotics: Robot arms for precise pick-and-place operations.
3. Drones and UAVs: Efficient flight path planning.
4. Medical Robotics: Surgical robots for precise motion control.
5. Warehouse Automation: Path optimization for Automated Guided Vehicles (AGVs).

12.6 Challenges and Future Directions

12.6.1 Challenges

• Real-Time Computation: Balancing speed and accuracy.
• Uncertain Environments: Handling dynamic and unknown obstacles.
• Energy Efficiency: Optimizing power consumption.
• Multi-Robot Coordination: Avoiding collisions in swarm robotics.

12.6.2 Future Directions

• AI-Driven Motion Planning: Deep learning for adaptive navigation.
• Quantum Computing: Faster computation for complex environments.
• Bio-Inspired Path Planning: Using swarm intelligence and neural models.
• Integration with IoT: Smart robots connected to cloud computing for better decision-making.

12.7 Summary

This chapter covered path planning and trajectory planning, key components of robot control systems. Path planning finds a collision-free route, while trajectory planning ensures smooth movement along the path with velocity and acceleration constraints. Various algorithms, including A, RRT, polynomial interpolation, and optimal control*, were discussed. The chapter also highlighted applications, challenges, and future research trends in robotics motion planning.

12.8 Review Questions

1. What is the difference between path planning and trajectory planning?
2. Describe the A* algorithm and its advantages over Dijkstra’s algorithm.
3. What are the different types of trajectory planning methods?
4. Explain the significance of polynomial trajectory planning.
5. What are the key challenges in real-time motion planning for robots?

---
