Example Breakdown: Explaining Heat Exchangers to Different Audiences

A heat exchanger is a device used to transfer heat between two or more fluids without mixing them. Let’s break down how you would explain this concept to different audiences in mechanical engineering.

---

1. Explaining to Mechanical Engineering Students

Approach: Build understanding through fundamental principles, equations, and applications.

Step-by-step breakdown:

1. Definition:
   • "A heat exchanger is a device that transfers thermal energy from one fluid to another without direct contact."
2. Basic Principle:
   • Use the first law of thermodynamics to explain energy conservation.
   • Introduce Fourier’s Law for conduction and Newton’s Law of Cooling for convection.

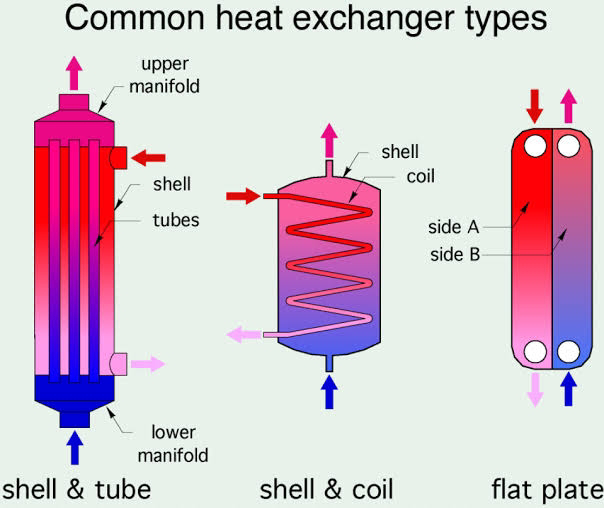

3. Types of Heat Exchangers:
   • Shell and tube
   • Plate heat exchangers
   • Air-cooled
   • Regenerative
4. Governing Equation:
   • The general heat transfer equation: where:
     • = heat transfer rate
     • = overall heat transfer coefficient
     • = heat exchanger surface area
     • = log mean temperature difference (LMTD)
5. Practical Application:
   • Example: "A car radiator is a heat exchanger that cools engine coolant using airflow."
6. Hands-on Learning:
   • Encourage software simulations using ANSYS Fluent or SolidWorks Flow Simulation to visualize heat distribution.

---

2. Explaining to Fellow Mechanical Engineers

Approach: Be precise, use industry terminology, and provide performance analysis.

Key Discussion Points:

• Design Optimization:
  • "To improve efficiency, we can increase fin density in finned tube exchangers or optimize flow rates."
• Performance Metrics:
  • Effectiveness-NTU method vs. LMTD method for heat exchanger sizing.
• Material Selection:
  • "We use copper for high thermal conductivity, but stainless steel for corrosion resistance."
• Computational Analysis:
  • Use CFD models to analyze heat transfer rates and pressure drop.
• Industry Applications:
  • "In power plants, regenerative heat exchangers improve Rankine cycle efficiency."
• Case Study Example:
  • "A failure analysis on a shell-and-tube exchanger showed fouling effects reducing efficiency by 20%."

---

3. Explaining to Non-Engineers (Clients, Managers, or General Public)

Approach: Avoid technical jargon and focus on real-world impact.

Simple Explanation:

• What it does:
  • "A heat exchanger transfers heat from one fluid to another to improve efficiency."
• Analogy:
  • "Think of it like a frying pan: heat from the burner transfers to the pan, which then heats your food."
• Why it matters:
  • "In HVAC systems, heat exchangers help save energy and reduce electricity bills."
• Cost and Efficiency:
  • "Upgrading to a more efficient plate heat exchanger can reduce fuel consumption by 15%."
• Real-world Example:
  • "In a home water heater, a heat exchanger transfers heat from hot gases to water, reducing energy waste."

---

4. Explaining in Research or Academic Settings

Approach: Provide scientific depth with clear data representation.

Key Research Discussion Points:

• Experimental Setup:
  • "We tested a cross-flow heat exchanger under varying inlet temperatures using a wind tunnel setup."
• Mathematical Modeling:
  • Use dimensionless numbers like Reynolds number (Re) and Nusselt number (Nu) for performance prediction.
• Data Representation:
  • Present efficiency curves comparing experimental vs. theoretical results.
• Innovative Design Proposals:
  • "Adding microchannel structures improved convective heat transfer by 30%."
• Concluding Findings:
  • "Optimizing flow turbulence enhanced overall effectiveness by 18%, as shown in the following graphs."

---

Final Thoughts:

✔ For students: Focus on fundamentals and visual learning.
✔ For engineers: Discuss technical optimizations and industry applications.
✔ For clients: Explain benefits in a relatable and cost-effective manner.
✔ For research: Maintain scientific rigor with clear data presentation.
